Nørreport Bike Stand

010 cobe objects norrport bike stand 010 cobe objects norrport bike stand
Space optimised
design

Year: 2015

The Nørreport Bike Stand is designed to optimize the use of space in connection with bicycle parking. The bicycle stands were originally developed for Nørreport Station in Copenhagen. The characteristic feature of the Nørreport Bike Stand is the slim pillar and the bicycle brackets made in one piece bent into a V-shape. The stand is available with one or two brackets and with the option of mounting either a solar lamp, an uplight or a simple closed cap at the top. The brackets can be used for all ordinary bicycle tires and do not damage lights mounted on the wheels. The double-bracket stands are space-saving, because the wheels of parked bicycles overlap.

See more at www.noerreportbikestand.com

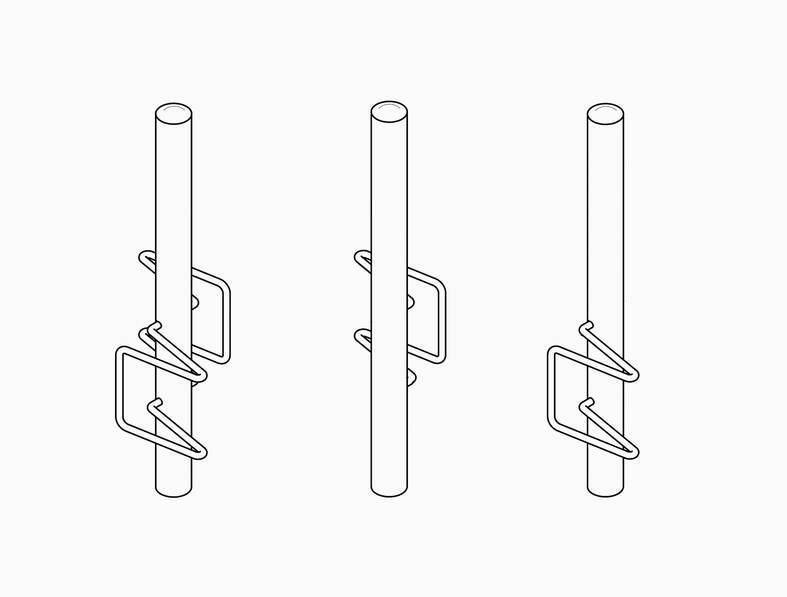

020 cobe objects norrport bike stand diagram

Double and single bicycle stands.

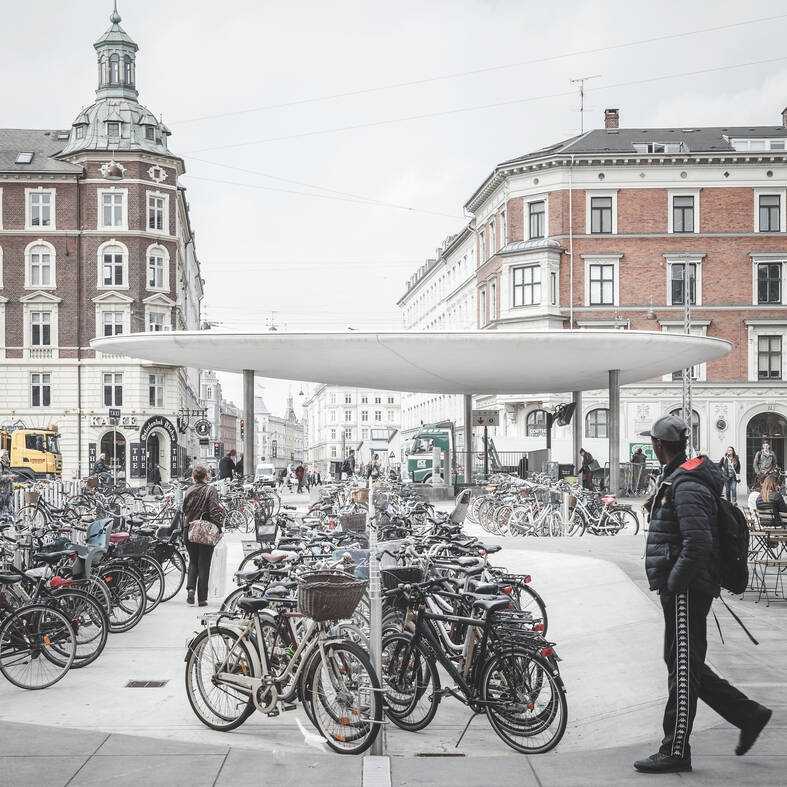

030 cobe objects norrport bike stand
040 cobe objects norrport bike stand

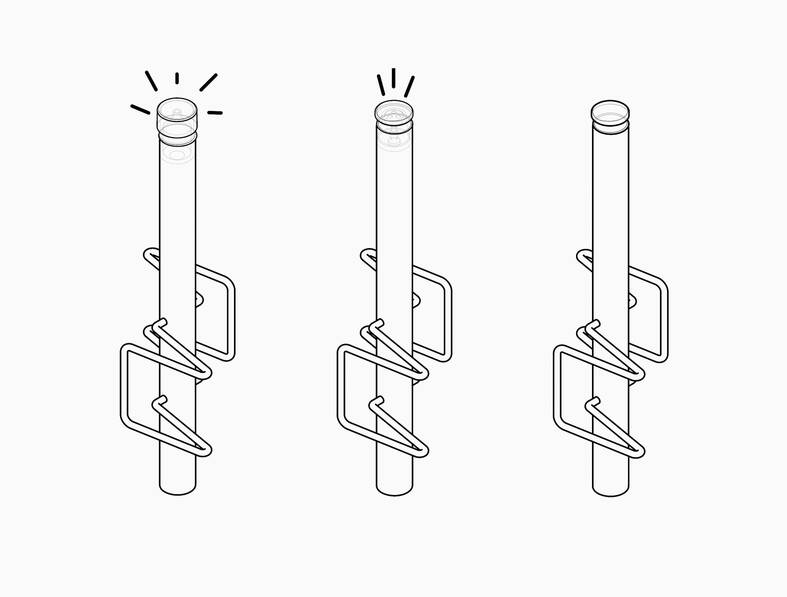

050 cobe objects norrport bike stand digram

Optional tops: Solar cell lamp, uplight or steel cap.

Like stars
in a row

The best use of the area is obtained when the bicycle stands are placed close together, at a distance of 450–475 mm and turned 45 degrees. Besides stainless steel, the bike stand also comes in other materials such as galvanized steel and powder painted steel, in an array of
different colours.

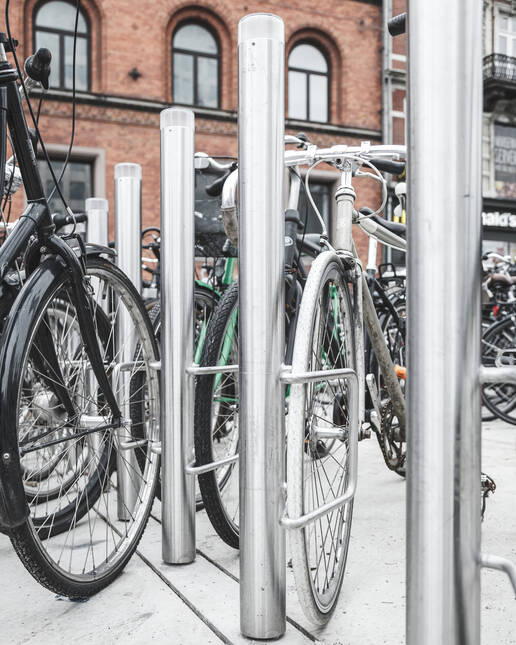

060 cobe objects norrport bike stand

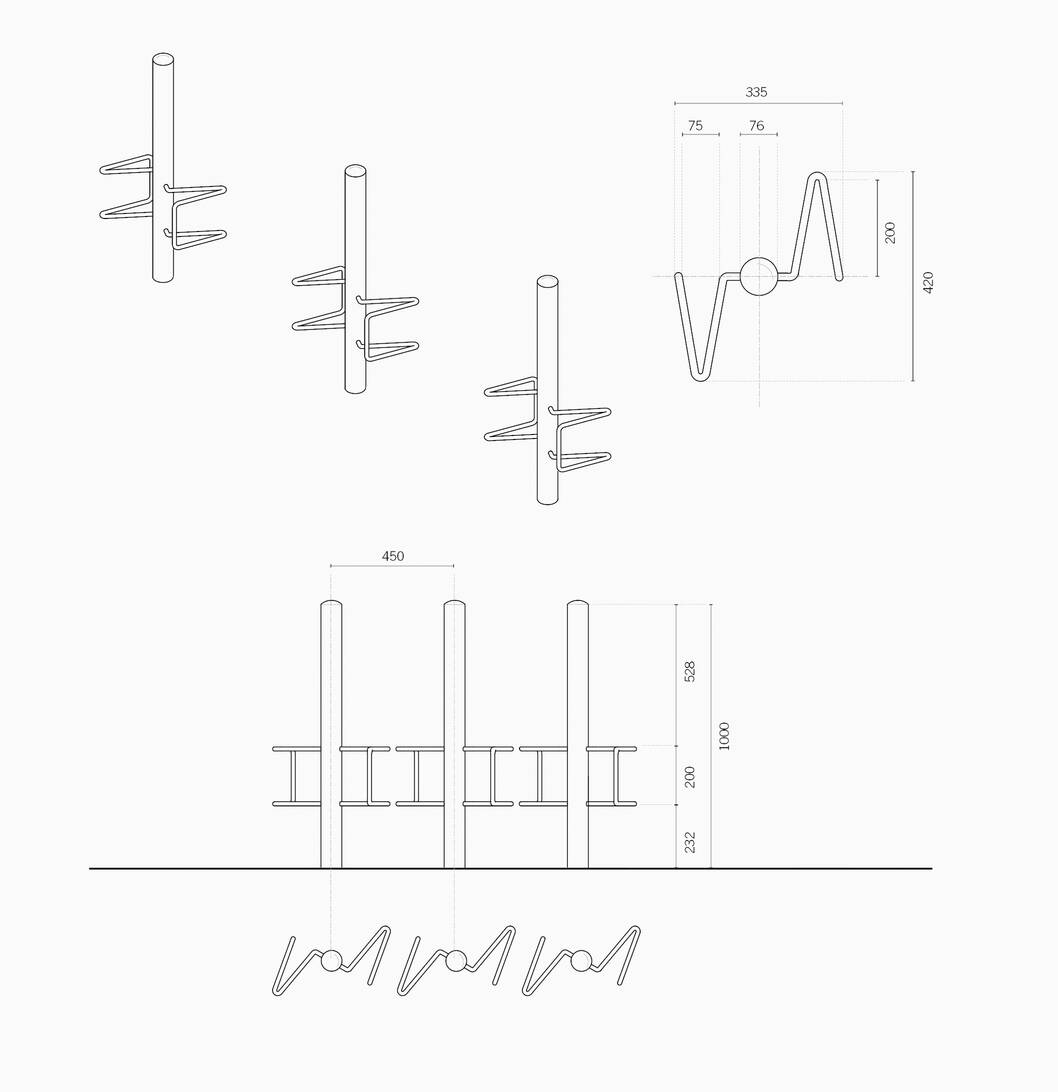

070 cobe objects norrport bike stand diagram

At Nørreport Station, the bike stands are made of stainless steel, and the many solar lamps on top of the bike stands light up when it gets dark, looking like a row of a thousand stars, while uplights on other bike stands illuminate the underside of the cloud-shaped bike covers

Dan Stubbergaard, architect and founder, Cobe

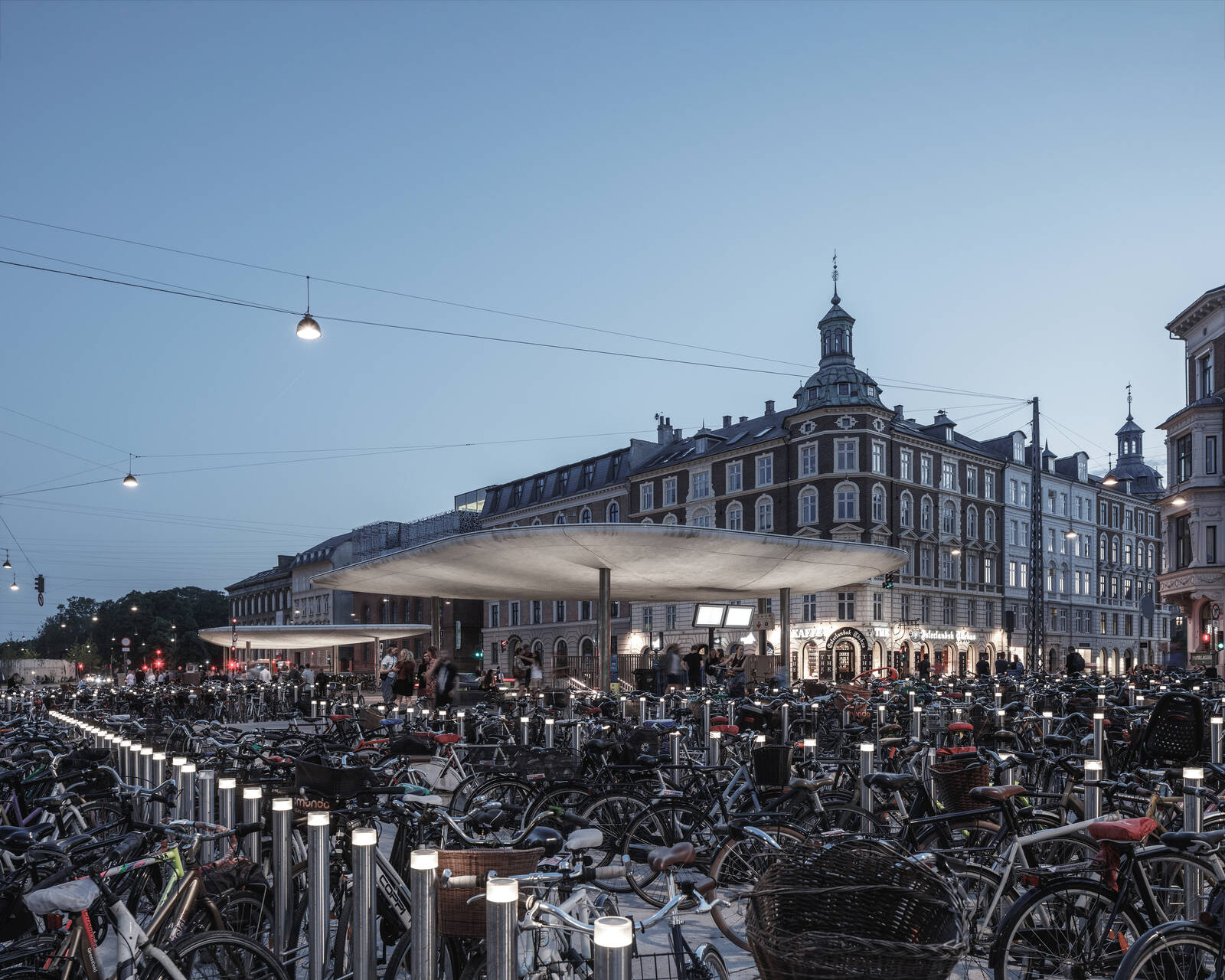

080 cobe objects norrport bike stand night

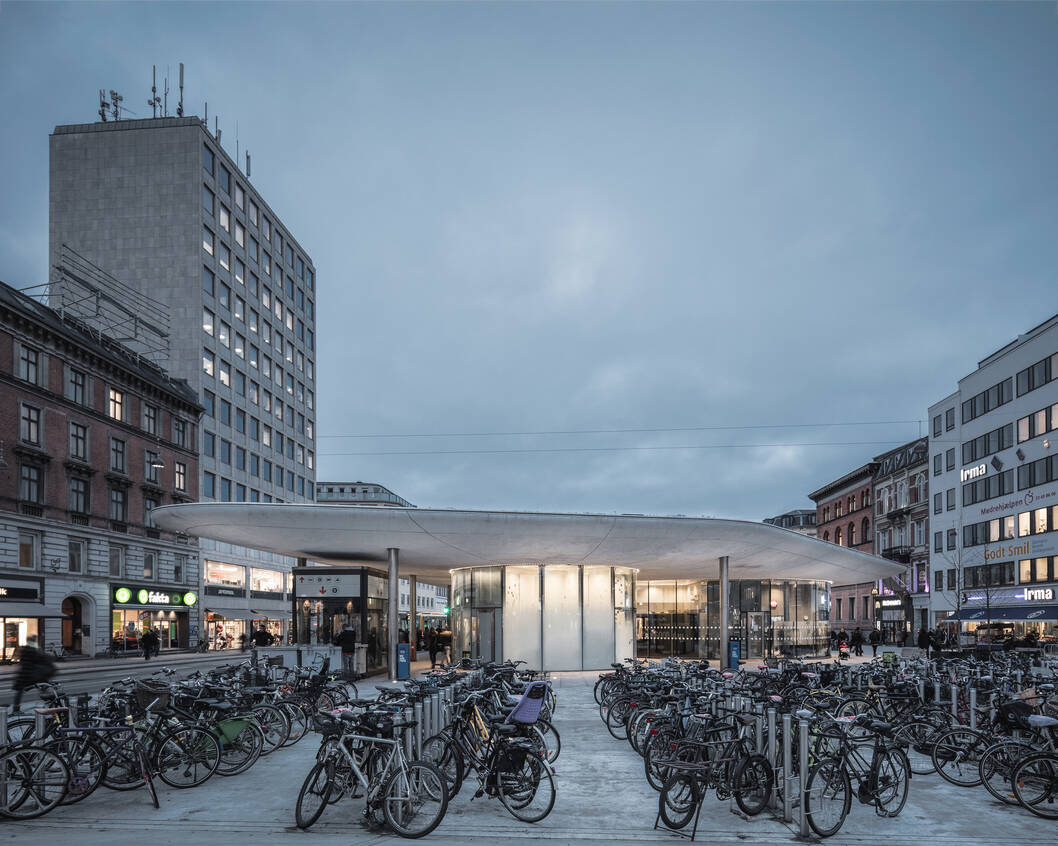

090 cobe objects norrport bike stand night

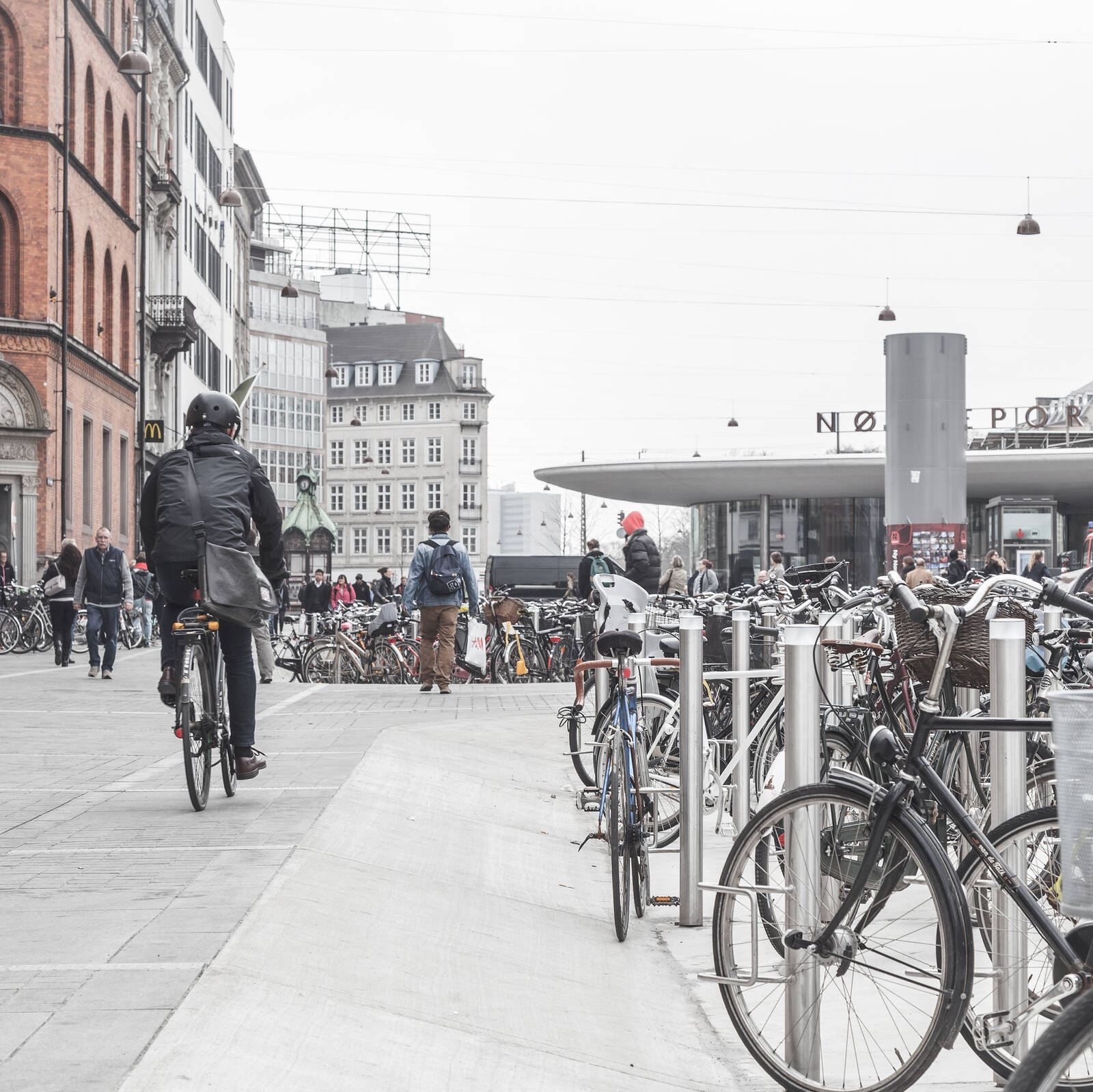

010 cobe norreport exterior

Nørreport Station

Nørreport Station is the busiest train station in Denmark, with more than 250,000 people passing through it daily. Since the 1960s, the bustling station developed into a vast and chaotic intersection in the middle of the city. The new station is composed of a series of rounded, floating roofs, mounted on distinctive glass pavilions. A study of pedestrians’ preferred routes formed the basis of the station’s new design, providing an open and welcoming public space with specific consideration for the needs of cyclists and pedestrians. Nørreport Station is not only a station but an urban landscape for people. It transforms Copenhagen’s busiest space into a single unified flow and becomes an integrated part of the pulsating city around it.

Read more about Nørreport Station

Year: 2015

Client: City of Copenhagen

Collaborators: Gottlieb Paludan Architects, HSM Industri

Team: Caroline Nagel, Mads Birgens, Johanne Holmsberg, Thomas Krarup, Tabea Treier

Photographer: Rasmus Hjortshøj – COAST
